The APS Add On: Annealing Furnace adds a new production module to the Agile Production Simulation (APS). The standard configuration with a drilling and milling module is extended by the optionof a Annealing Furnace. The additional process module allows theintroduction of new derivatives into production or the expansion of
existing production configurations by an additional process step.

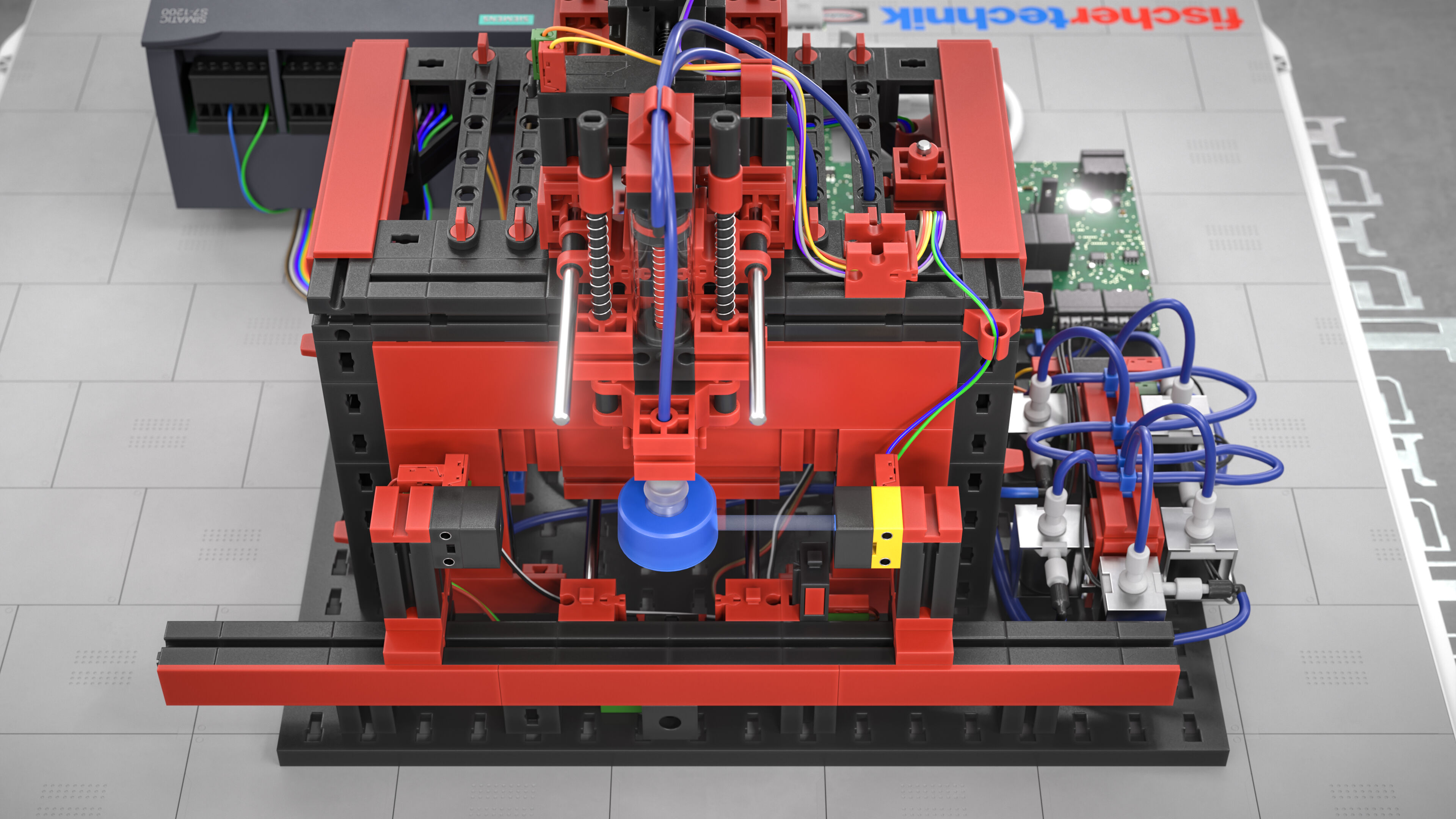

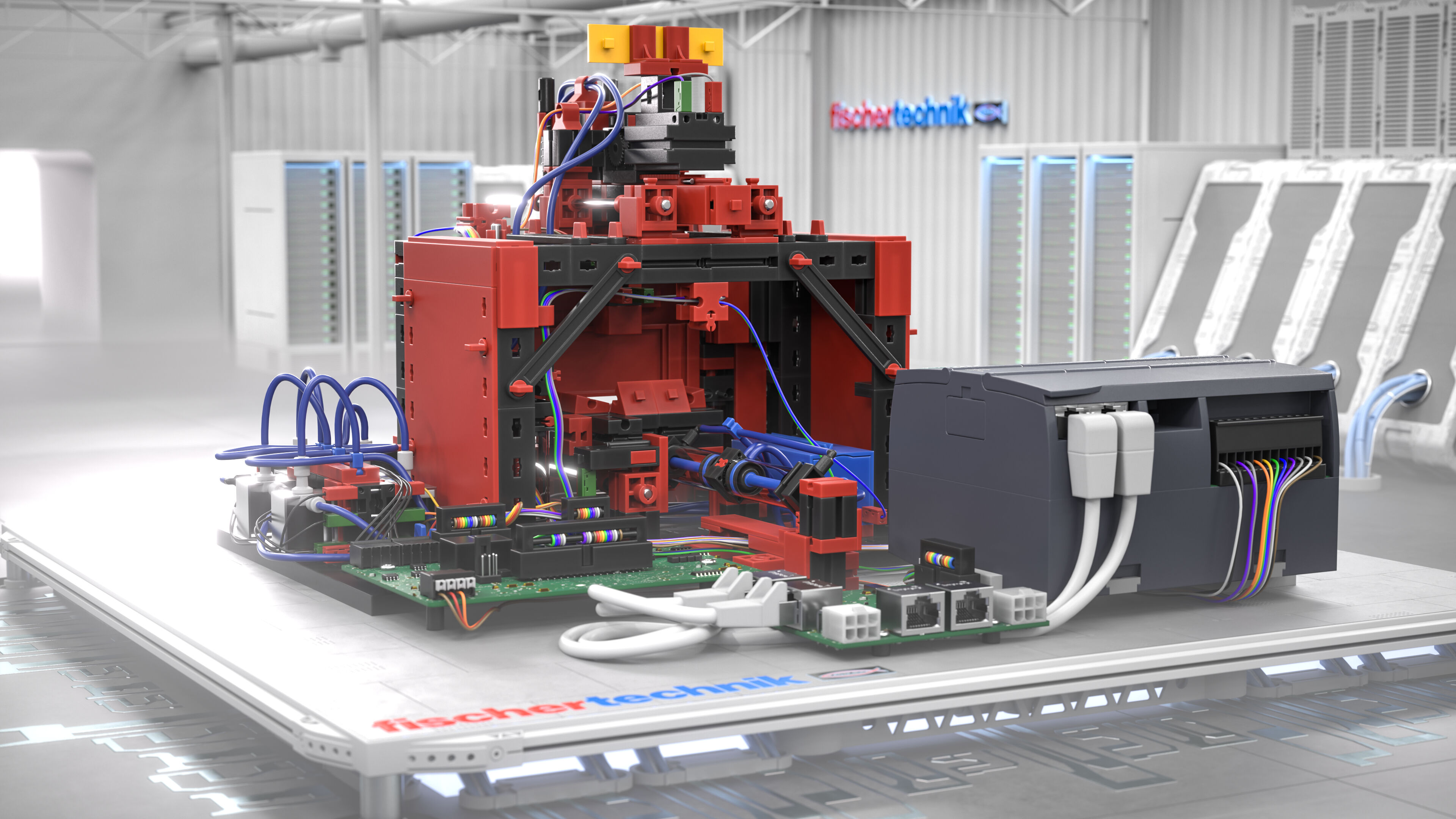

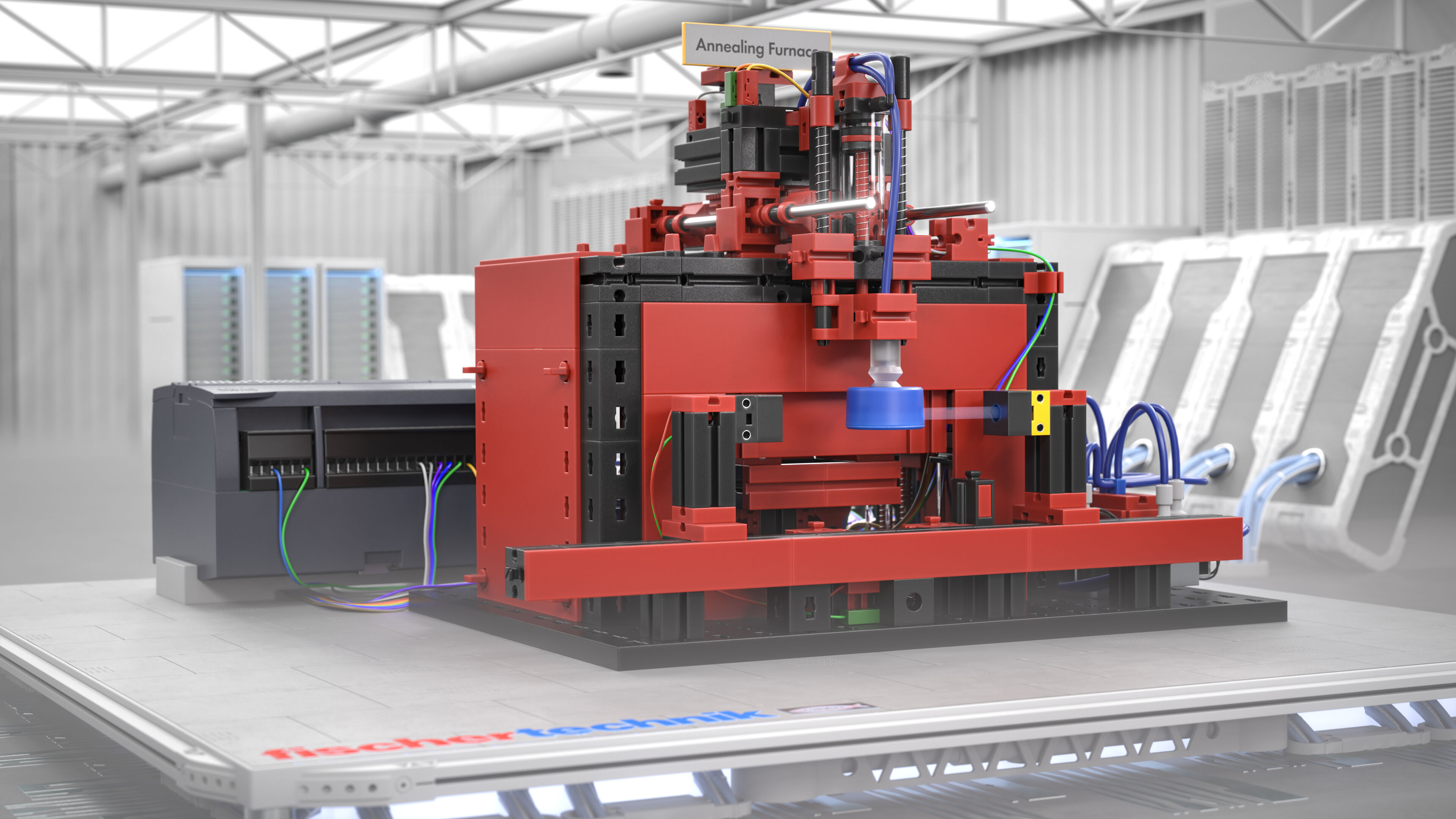

The Annealing Furnace consists of a docking station for the Automated Guided Vehicle system (AGV) and a vacuum gripper that transports the workpiece into the Annealing Furnace using pneumatics.Hardening is simulated there with a red light. After the process, theworkpiece is removed from the Annealing Furnace using a gripperand placed back on the AGV.
Control unit:- 24V model controlled with SIEMENS S7-1200
- Program in structured text already played on controller
